• Stable fusion construct using a TLIF approach, augmented with pedicle screws

  • Low imaging signature provides high quality post-operative MR images

  • Anatomical profile, multiple heights in three lengths

Procedure Description
Spinal fusion is performed in the treatment of severe back pain or a neurological deficit that has not responded to conservative treatment. The symptoms are caused by compression on a nerve or nerve root, commonly as a result of: damaged discs (discogenic pain or degenerative disc disease), abnormal slippage and motion of the vertebra (spondylolisthesis or spondylolysis), or other degenerative spinal conditions, including facet joint degeneration. Spinal fusion may be indicated for any condition that causes excessive instability of the spine, such as certain fractures, infections, tumours, and spinal deformity (such as scoliosis).

Treatment is achieved by decompressing the nerve and preventing motion at the effected segment and allowing for the adjacent vertebrae to permanently fuse.

Product Description

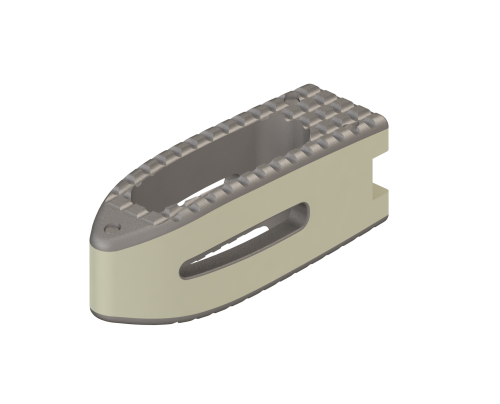

The Caliber TLIF (Transforaminal Lumbar Interbody Fusion) device is a single-component device manufactured from PEEK-OPTIMA, with one anterior and two posterior titanium-alloy imaging markers. Titanium coating is plasma sprayed onto the device integration surfaces.

The Caliber is anatomically shaped to fit the lumbar disc space optimally, with three different lengths and multiple heights to restore disc height. The bullet-nose makes insertion of the device simpler. The titanium-coated surfaces and large bone graft window improve osseointegration with the vertebral endplates and bone graft, resulting in a more stable construct. The procedure for insertion of the Caliber is simple and time efficient, with easy-to-use instrumentation that allows a minimally invasive approach when used in conjunction with the SOLFIX MIS system. It is recommended to augment the Caliber with supplemental posterior fixation using the SOLFIX2 pedicle screw and rod system.
